50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar

Product Categories
Shaoxing Nante Lifting Eqiupment Co.,Ltd.
Contact Now

50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar

Brand Name : NANTE

Model Number : HTR

Certification : ISO, CE, CCC

Place of Origin : CHINA

MOQ : 100m

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000000 Meter/Meters per Year

Delivery Time : within 10days

Packaging Details : carton or wooden case

Common Housing : -30oC Up To +60oC

BAYBLEND Housing : -20oC Up To +115oC

Flexible Strength : 75N/mm2±10%

Rated voltage : 600V

Current : 50~140A

Length : in reel

Contact Now

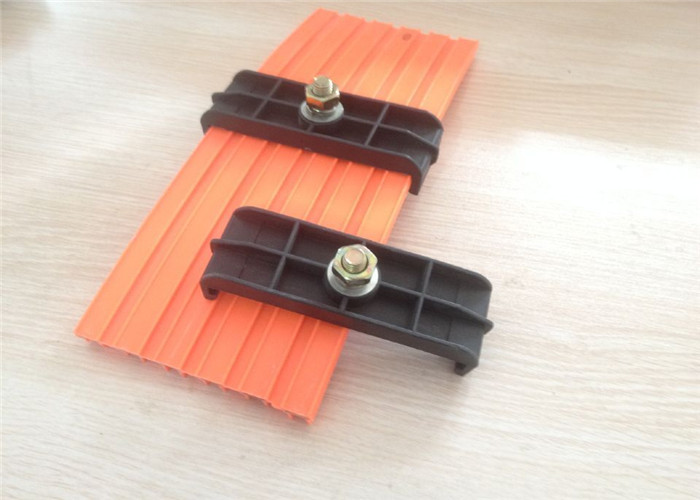

Light Weight Seamless Conductor Bar , 50A-140A High Tro Reel

50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar

50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar

Quick Details

  • Rated value: 4P, 600V, 50~140A.
  • Conductor material: Copper.
  • Insulated sleeve material: UPVC(heat resistance: 75℃).

PVC Seamless Conductor System, Flexible Monorail Feeding System, Seamless Power Rail, Multipole Leads Conductor System, High Tro Reel

Mechanical properties:

Flexible strength:75N/mm2±10%

Tensile strength:40N/mm2±10%

Temperature range:

Common Housing: -30oC up to +60oC

BAYBLEND Housing: -20oC up to +115oC

Combustibility:

Flame retardant

Self extinguishing:class B 1-no flaming paricles,self-extinguishing.

Resistance to chemicals:+45oC

Gasoline:Sulphuric acid 50%

Mineral Oil:Caustic soda 25% & 50%

Grease:Hydro-chloric acid,concentrated.

Application

  1. Small power line feeding system.
  2. Overhead and elongated tracks for cranes.
  3. Electric hoists, electric tools, stacking systems.
  4. Electric tools
  5. Other applications for supplying power to moving power load.

Technical Parameters

Type

Poles

Conductor Cross Section(mm²)

Max. Current(A)

Order-NO.

HTR1004

4

3×10+1×0.9

50A

761004

HTR1504

4

3×15+1×1.0

80A

761504

HTR2004

4

3×20+1×1.0

100A

762004

HTR2504

4

3×25+1×1.2

120A

725004

HTR3504

4

3×35+1×1.5

140A

763504

HTR1003

3

3×10

50A

761003

HTR1503

3

3×15

80A

761503

HTR2003

3

3×20

100A

762003

HTR2503

3

3×25

120A

725003

HTR3503

3

3×35

140A

763503
